Hindcast hurricane impact Sandy¶

Autor: Kees Nederhoff Email: kees.nederhoff@deltares.nl Date: 26-June-2017

Introduction in the case¶

In this tutorial the sandy coast of Bay Head (New Jersey, United States) during Hurricane Sandy (2012) is modeled. Hurricane Sandy originated from the Western North Atlantic Ocean in October 2012. The storm caused flooding, wind and wave damage. During Hurricane Sandy the state of New York and New Jersey were most severely hit (National Hurricane Center, 2012), see Fig. 19. Sandy made landfall on October 29, 2012 at 12:00 PM UTC during spring tide near Atlantic City, NJ. Hurricane Sandy caused wide-spread erosion of the coastal system as well as barrier island breaching at several spots. Sandy was the second costliest hurricane in the United States history with a total of 68 billion dollar in property damage (National Hurricane Center, 2012). XBeach (Roelvink et al., 2009) is a process-based model designed to describe the different storm regimes described by Sallenger (2000) and is used in as a tool to model the impact of Hurricane Sandy on the New Jersey coast.

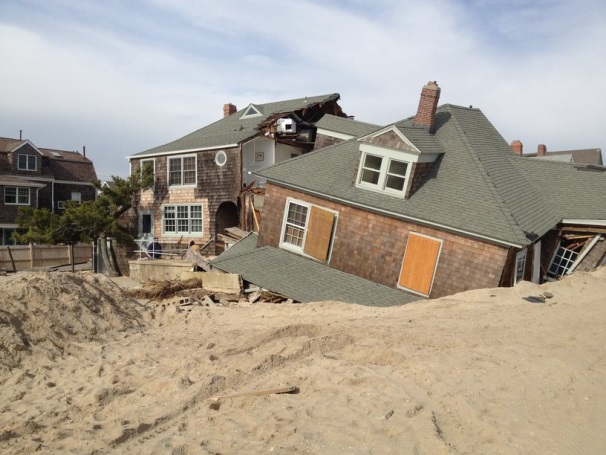

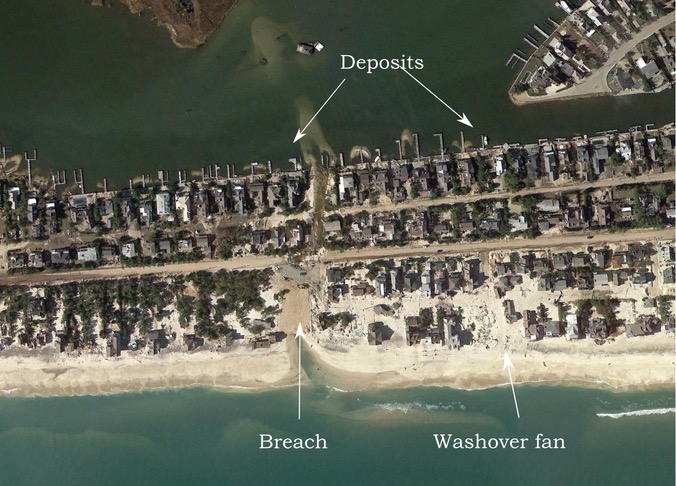

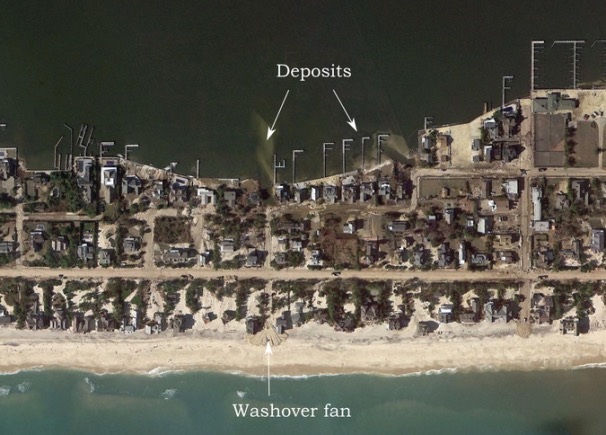

Fig. 19 Upper pictures show characteristic examples of damage which occurred during Sandy (Lopez-Feliciano, 2014). Bottom pictures shows examples of depositional features such as described by Donneley (2007) (source: Google Earth). Pictures are in the area of Bay Head, NJ and taken on November 3th 2012. ?

Tools and ingredients needed¶

We need the following tools:

Matlab with the OpenEarth toolbox
- Can be retrieved via: https://svn.oss.deltares.nl/repos/openearthtools/trunk
An XBeach executable
- Can be retrieved via: http://www.xbeach.org
This tutorial data folder with scripts, data and model set-up
- Can be retrieved via: https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files
Add the files in the folder Functions to your Matlab folder. Antoher option is to ad the entire path of Functions. This can be done with the Matlab command addpath.

The ingredients of every XBeach model set-up contains 5 steps:

Bathymetric information: pre and post storm of several sources (LiDAR and Coastal Relief Model). LiDAR is gathered by the USGS, both pre and post Sandy. The Coastal Relief Model (CRM) doesn’t have specific date.
Boundary conditions: water levels and wave spectra. This can either be measured by a buoy or simulated by another model (nesting). In this tutorial we are going to nest XBeach in an existing Delft3D model of the Atlantic coast.
Generate your XBeach model: once we have the bathymetry (step 1) and boundary conditions (step 2) we can generate the XBeach model. It’s recommended to start with default values in XBeach.
Calibrate and validate your XBeach model: a process-based model is a schematic reproduction of the reality. It’s however always important to have some idea of the skill of your model (eg. bias, RMSE, BSS, see Van Rijn, 2003). One can either only validate the default model set-up or also calibrate different model parameters. A straight-forward method of calibrating an XBeach model is by applying the two-step calibration approach of Nederhoff et al. (2015).
Post-processing: make graphs and animations of the final run to present your supervisor or client. ?

Step 1: make a bathymetry¶

In this first step we are going to use two different data sources in order to define all the bathymetric information we need to model this area with XBeach. There are two important steps. First of all, we need to interpolate the different data sources to our area of interest. Secondly, we need to combine the different data sources together. In this tutorial we will use Coastal Relief Model (CRM; NGDC, 2014) as a basis of our model. Everywhere there is LiDAR data from the USGS the CRM values will be overwritten. An optional third step is applying a small smoothing function in order to get rid of large disturbances or add more data sources.

Download the data sources. In this example we use two sources: LiDAR and CRM
- For LiDAR information one goes to the website: http://www.csc.noaa.gov/dataviewer. LiDAR is a remote sensing technology that measures distance by illuminating a target with a laser and analyzing the reflected light. This technique is often used to measure barrier erosion during extreme events like Hurricane Sandy.
  - Draw a box around the barrier that you want to model.
  - Select the ‘2012 USGS Pre Sandy LiDAR’ and click on ‘add to chart’. See Fig. 20.
  - Repeat this step if you would like to have more data (eg. Post Sandy data).
  - Click on ‘Checkout’ and define output settings. XBeach uses a Cartesian grid laid out (eg. UTM) in meters. It’s recommended to use grid output instead of points cloud and to select ‘ground-based’ on the ‘last return’. This makes it possible to model the ‘bare earth’ without small trees and bushes. See Fig. 21 for the recommended settings.
  - You will receive an email from NOAA in a few minutes where you can download the files.
- For CRM data one goes to the website: http://maps.ngdc.noaa.gov/viewers/wcs-client/. Coastal Relief Model provides a comprehensive view of the U.S. coastal zone, integrating offshore bathymetry with land topography.
  - Draw a box around the barrier that you want to model
  - Select ASCII grid and click on download. See Fig. 22
  - The function to read .asc files (arcgridread_v2.m) wants to read a no data header. The CRM doesn’t provides such a values, so we have to enter it manually. See the .asc files of the LiDAR for the format.
NB: For this tutorial one can use the ``crm.asc``, ``2012_USGS_preSandy_NJ.asc`` and ``2012_USGS_postSandy_NJ.asc``, see https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files/Data/Step1_makebathy/
Interpolate the data to the area of interest on a defined grid resolution
- A minimum resolution of 2x2m is recommended in order to keep enough information of the exact shape of the dune face.
- CRM needs to be converted to the UTM coordinate system because XBeach cannot handle geographic coordinate systems (eg. lat/lon)
Optional steps:
- Add more data sources of for example beach profiles
- Smooth the data in cross-shore and longshore direction

After this first step one will have bathymetric information both pre and post storm of the area of interest. This data sources can be used in a data analysis (eg. determine erosion volumes) and will be used as an input in order to set-up and compare the model with (step 3 and 4). The different steps as described are coded in the Matlab m-file JIP_1_combinebathy.m. One can found the data in https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files/Data/Step1_makebathy/ . The final bathy is saved in the mat-file bathy_final.mat and will be used when we will make the actual XBeach model.

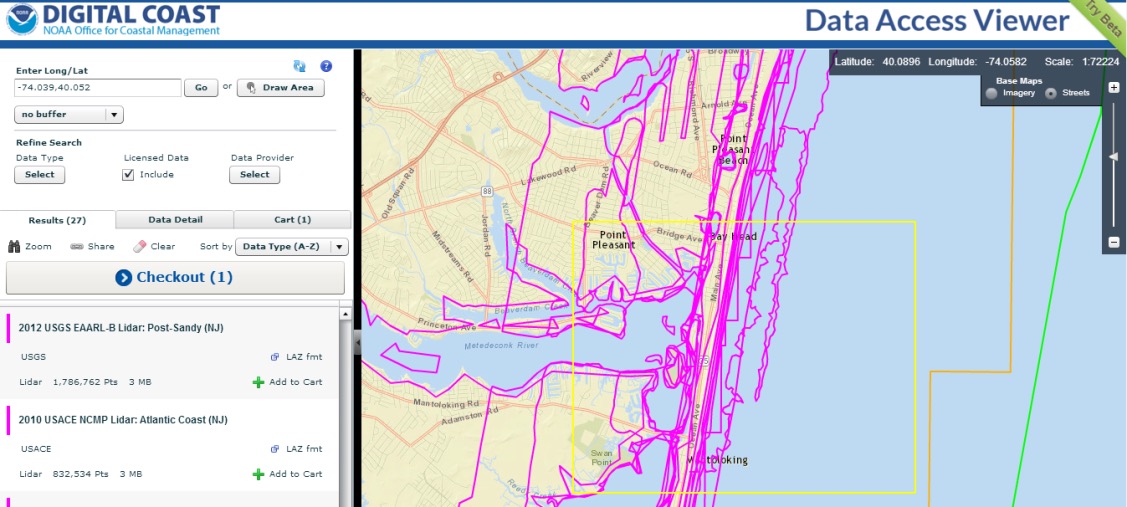

Fig. 20 Select the LiDAR data for the area of interest

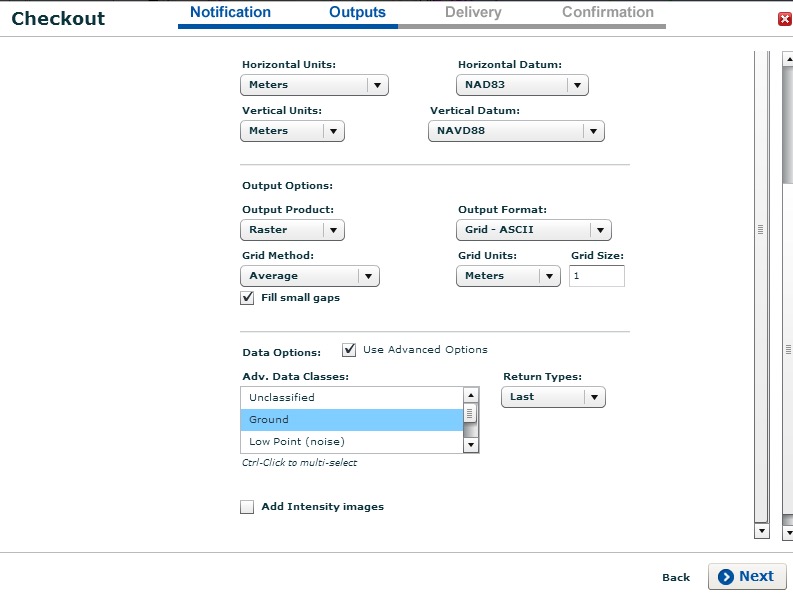

Fig. 21 Define the output variables. Make sure you use UTM coordinates!

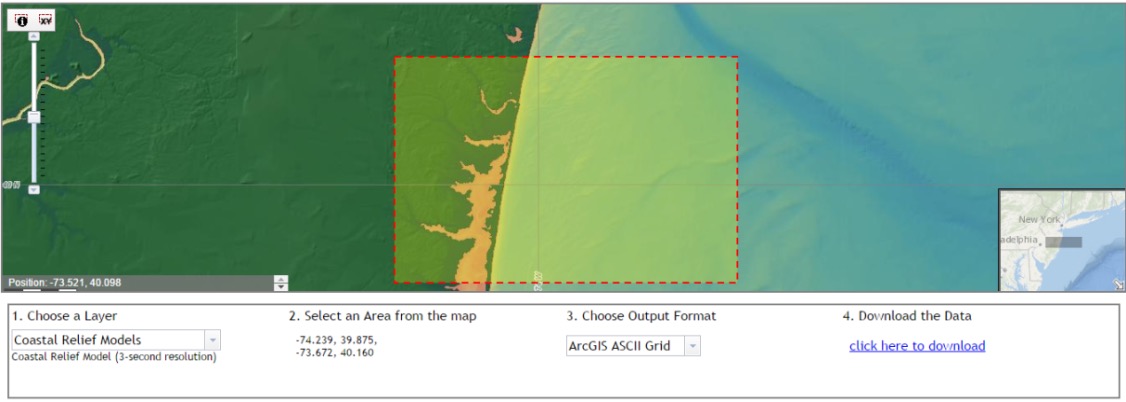

Fig. 22 Also download the CRM model in order to have values for all the grid cells.

Step 2: determine boundary conditions¶

In this second step we are going to determine the boundary conditions (waves and water levels) for XBeach by nesting (offline coupling) the model in a Delft3D model of the Atlantic Ocean during Hurricane Sandy (van Ormondt, personal communication, 2014). The results of the Delft3D model needs be validated with available measurement data in order to have an idea of the quality of the nesting procedure (skill scores: eg. R2, RMSE, bias).

Determine the water levels and wave information on sea by making an observation points in Delft3D-FLOW and WAVE. The water levels can be extracted from the trih-file, see Fig. 23. The wave information can be saved as a sp2-file which can directly be read by XBeach, Fig. 25.
- Validate the wave information. Wave heights and periods are determined at buoy 44065 and 44025 offshore of Sandy Hook. Data can be retrieved from the National Data Buoy Center from NOAA at http://www.ndbc.noaa.gov/, see Fig. 26.
  - Go to buoy, click on it a select ‘view history’.
  - Go to Standard meteorological data and the year of the event (Sandy it is 2012). WVHT is the significant wave height, DPD is the dominant wave period and the MWD is the wave direction (in nautical degrees).
  - Validate the wave height and period. What is the RMSE per station per parameter?
- Validate the water levels. Information of NOAA with the use of tide gauge 8534720 near Atlantic City, 8531680 near Sandy Hook, 8518750 near Battery. Data can be retrieved at https://tidesandcurrents.noaa.gov/map/. Make sure you select the same horizontal and vertical reference as the bathymetry (for example NAVD88 and MSL).

  The full URL for water level data during Hurricane Sandy of the station of Atlantic City, for other stations change the gauge number (8534720) in the required gauge number (eg. 8531680, 8518750) https://tidesandcurrents.noaa.gov/waterlevels.html?id=8534720&units=metric&bdate=20121025&edate=20121031&timezone=GMT&datum=MSL&interval=6&action=
  - Select the measurement station and click on it
  - Click on gauge height. This will automatically refer you to the webpage of the USGS waterbase were all the USGS measurements can be found.
  - Validate the water level. What is the RMSE per station?

In this tutorial we will not go through all the validation steps, however Nederhoff (2014; Section F5, page 145) gives an elaborate validation of the Delft3D model. In https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files/Data/Step2_makebc/Measurements some measurements of the water levels and waves can be found. In https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files/Data/Step2_makebc/Model the model output of Delft3D can be found.

Determine the water levels in the bay. The Delft3D-model doesn’t contain water levels in the Barnegat Bay. For the bay surge information the USGS website ‘Waterbase’ can be visited. Data can be retrieved at http://nwis.waterdata.usgs.gov/. There are in total four different stations in Barnegat Bay, however not all data is quality approved. The data at Barnegat Light NJ is approved (01409125). One should search for the name of gauge number. Make sure you select the same reference system as the bathymetry, see Fig. 28.

For the full URL of the Waterbase website for data of the Barnegat Bay during Sandy: http://nwis.waterdata.usgs.gov/usa/nwis/uv/?cb_00065=on&format=gif_default&site_no=01409125&period=&begin_date=2012-10-25&end_date=2012-10-31

After this first step one will have the boundary conditions needed to force XBeach. These data sources can be used in a data analysis (eg. determine maximum wave height) and will be used as an input in order to set-up and compare the model with (step 3 and 4). The different steps as described are not coded in Matlab. The data can be found in https://github.com/openearth/xbeach-docs/tree/master/docs/tutorials/sandy/files/Data/Step2_makebc/ . The result of the waves, water levels (sea and bay) can be found in Fig. 23.

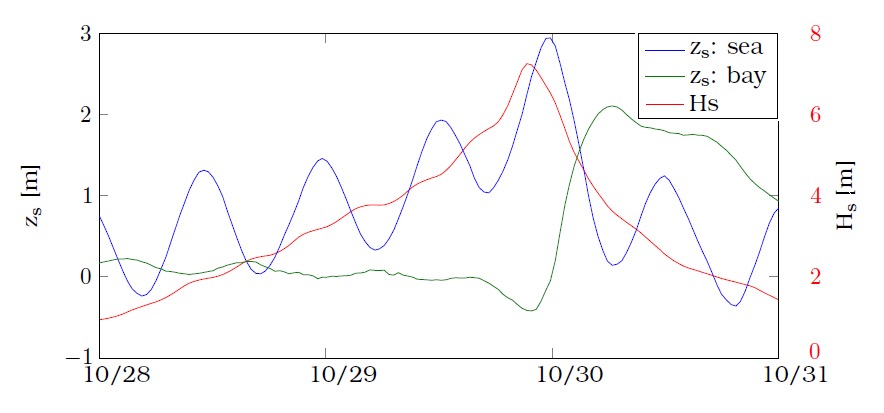

Fig. 23 The wave and surge level data at sea are obtained by a nesting procedure between XBeach and Delft3D. The bay water level are measured. Reference level: NAVD88.

Fig. 24 Observation points in Delft3D-FLOW

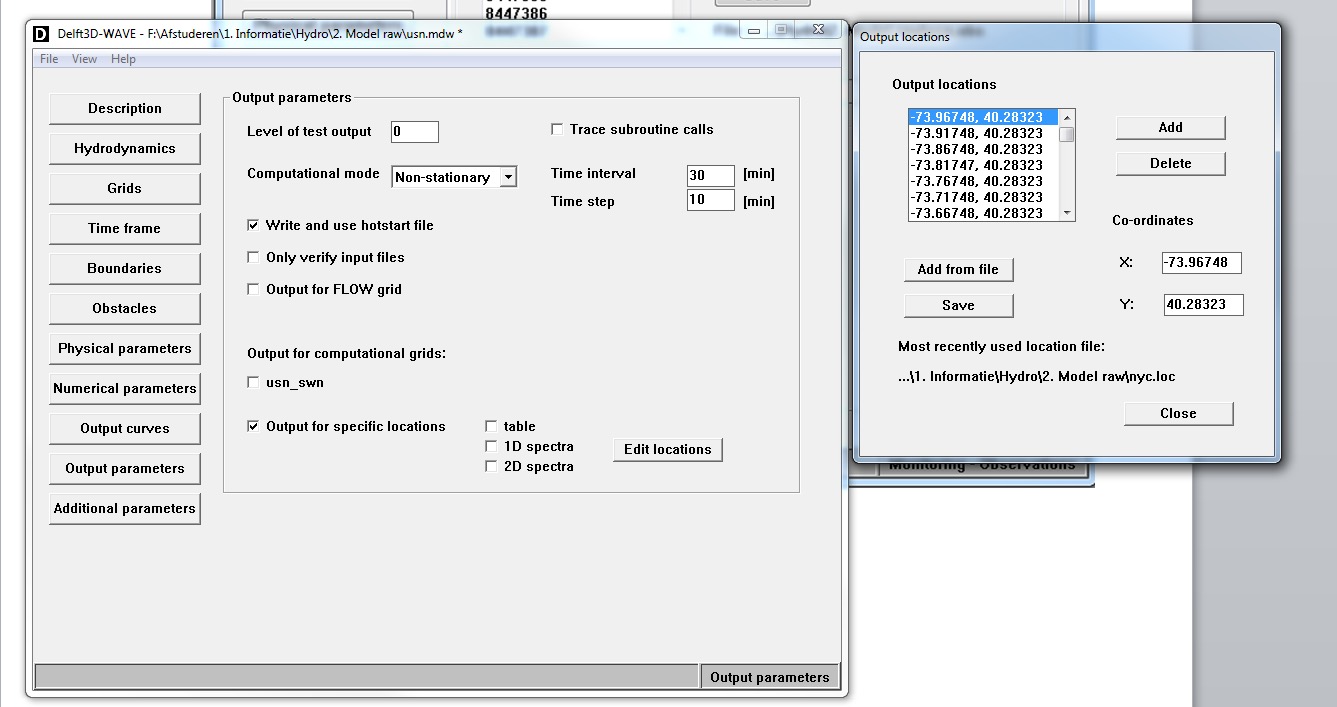

Fig. 25 Observation points in Delft3D-WAVE

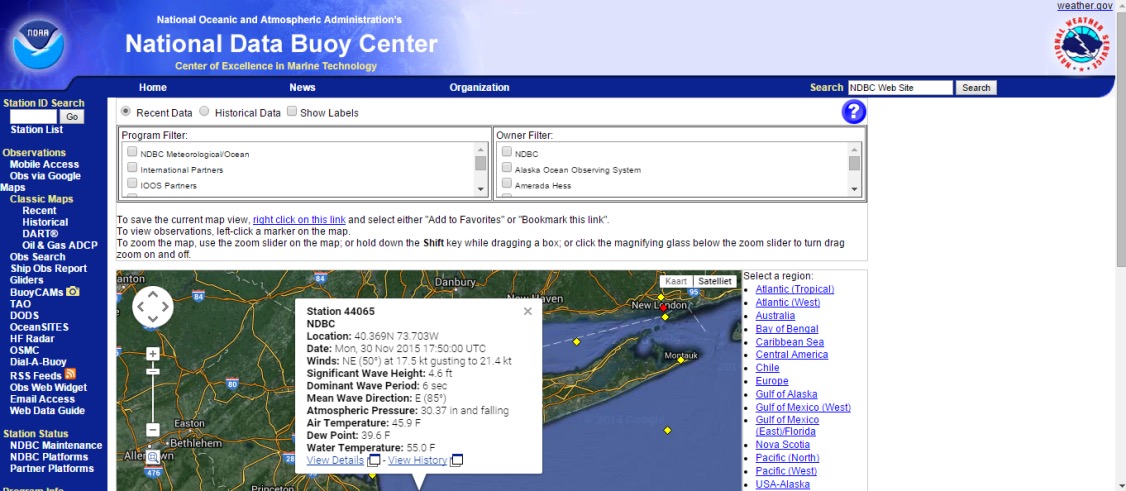

Fig. 26 The National Data Buoy Center. All information related to wave buoys can be found here.

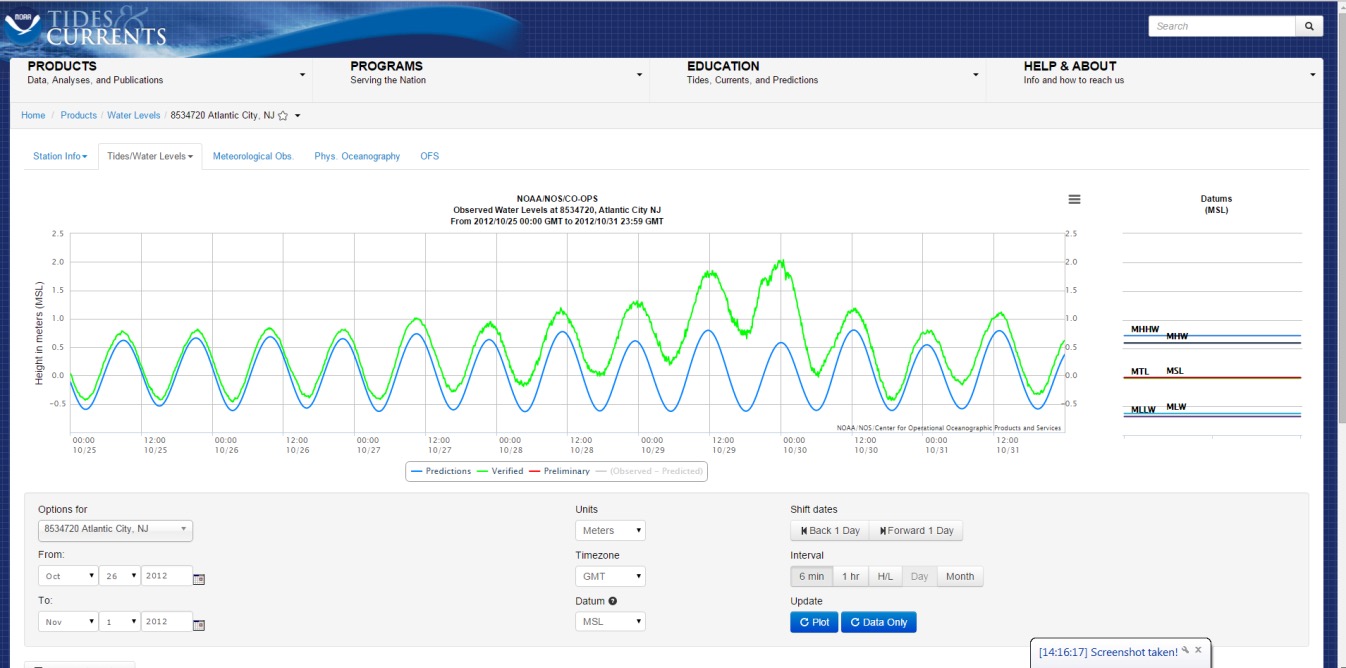

Fig. 27 NOAA: tides and currents. A useful website for tide information along the US coast

Fig. 28 USGS: Waterbase. Information related to rivers and bays (eg. discharges, temperature, gauge height, salinity) can be found here.

Step 3: generate a XBeach model¶

We now have the two most basic input requirements for the XBeach model: bathymetry and boundary conditions. Step 3 will be the load everything into Matlab and generate the actual XBeach grid and settings file (so called params.txt). One can found a Matlab script to generate the model with the name JIP_3_makeXBeach.m

We will go no trough the basic set-up steps one should consider the following when applying the Matlab function xb_generate_model. A full list of options in the params.txt can be found in the XBeach manual. On top of that the params.txt of this tutorial is added.

Bathymetry
- Location: think about the area of interest, shadow zone of waves (depends on the incident wave angle) and offshore boundary depth (no wave breaking, cg / c < 0.8).
- Resolution. Grid resolution should be sufficient to describe long wave (10-20 points) and multiple grid points per feature (5-10). For dune erosion and overwash cases a minimum resolution in cross-shore (dx) of 1 till 2 meter is advised in order to have enough accuracy to solve the morphological processes. A resolution of 5 till 10 meters is advised; however it is possible to increase this to higher values. The toolbox will make a robust model set-up based on a set of default settings (like points per wave length and Courant number).
- Other settings which are important are for example settings the grid in world coordinates, and seaward flatten and extending of the model. The last step is needed to have no bathymetry gradient at the boundary. Offshore boundary at sufficiently deep water for realistic long wave boundary conditions (n < 0.8). Uniform coast (three cells) near lateral boundaries and offshore boundary This is needed to have realistic long waves and proper boundaries.
Boundary conditions
- Waves. Different types (keyword ‘instat’, see Fig. 29) | Stationary: no wave groups, short wave action | Wave group forcing: resolving long wave (‘surf-beat’) | Parameterized JONSWAP/PM spectrum (instat = jons) | 2D Variance density input (instat = vardens) | SWAN sp2 output (instat = swan) | Reusing exact previous realization (instat = reuse) | Non-hydrostatic: also resolving short waves
- Waterlevels.

  To initialize with a given (possibly spatially varying) waterlevel zsinitfile specifying a water level per grid cell zs0 imposes one initial water level across the domain
- Lateral boundary | Neumann: no-gradient boundary | Wall: no flux boundary
- Offshore boundary | abs1d / abs2d absorbing generation; long waves can enter / leave | wall no flux boundary | waterlevel a waterlevel is prescribed on the boundary
Other settings
- Bed friction

  There are multiple bed friction formulations (keyword: bedfriction) in XBeach. This gives the user the possiblity to calculate with for example Chezy, Manning, cf
- Sediment transport

  A common used method to calibrate the sediment transport time is the facua option. This will change the offshore sediment transport. A value between 0.1 and 0.3 is advised.
- Morphology

  A common used method to decrease the computational time is the morfac option. A value between 1 and 10 is advised.

Fig. 29 Different wave boundary options: surf beat versus non-hydrostatic.

Listing 1 Example params.txt¶

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%% XBeach parameter settings input file                                     %%%
%%%                                                                          %%%
%%% date:     30-Nov-2015 23:46:15                                           %%%
%%% function: xb_write_params                                                %%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%% Bed composition parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

D50          = 0.000300
D90          = 0.000400

%%% Flow boundary condition parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

front        = abs_2d
back         = abs_2d
epsi         = -1

%%% Flow parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

bedfriction  = manning
bedfricfile  = bedfricfile.txt

%%% General %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

tidelen      = 144

%%% Grid parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

depfile      = bed.dep
posdwn       = 0
nx           = 836
ny           = 100
alfa         = 0
vardx        = 1
xfile        = x.grd
yfile        = y.grd
xori         = 0
yori         = 0
thetamin     = 0
thetamax     = 180
dtheta       = 10
thetanaut    = 1

%%% MPI parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

mpiboundary  = x

%%% Model time %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

tstop        = 259200
CFL          = 0.700000

%%% Morphology parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

morfac       = 10
morstart     = 0

%%% Sediment transport parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

facua        = 0.100000

%%% Tide boundary conditions %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

zs0file      = tide.txt
tideloc      = 2

%%% Wave boundary condition parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

instat       = 5

%%% Wave-spectrum boundary condition parameters %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

bcfile       = loclist.txt
rt           = 1800
dtbc         = 1

%%% Output variables %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

outputformat = netcdf
tintm        = 43200
tintg        = 3600
tstart       = 0

nglobalvar   = 6
zb
zs
H
ue
ve
sedero

nmeanvar     = 5
zb
zs
H
ue
ve

Step 4: running XBeach¶

There are four ways to run a XBeach simulation:

Windows: with one core. This can be done by making a bat file. One can make a bat-file with a simple texteditor like Notepad or Textpad and type: call “folderofXBeachsourceXBeach.exe” The bat file needs to be save as ‘run_XBeach.bat’
Windows: with multiple cores via MPI. MPI is a standardized and portable system designed by a to function on a wide variety of parallel computers. Fortran (the programming languages of XBeach) can use MPI. For Windows computers one can use MPICH. For more information about MPICH one is referred to http://www.mpich.org/downloads/. For a tutorial to install MPICH on Windows (http://oss.deltares.nl/web/xbeach/forum/-/message_boards/view_message/718128).

Running xbeach in mpi mode with mpich is quite easy once the previous steps have been successfully completed. Firstly, mpi jobs should be started with the mpiexec.exe process (not with a call to xbeach.exe directly). To do so open a command prompt window and enter the following command:

mpiexec.exe –n [N] –wdir [xbeach_params.txt_dir] –mapall [dirtoxbeachxbeach.exe]
UNIX: It is also possible to calculate on a UNIX system. For more information about compiling XBeach on your UNIX system see https://oss.deltares.nl/web/xbeach/compile-code.
Cloud computing: we support a virtual machine on Amazon. The newest release can be found as a AMI (Amazon Machine Image). Search for XBeach_Kingsday.

XBeach has an unit speed of about $3 - 4 \cdot 10^{-6}$ per second. This means that 1 million grid cells (nx: 1000 and ny: 1000) for one hour (3600 seconds) will take 3.66 hours to calculate. When running on 8 cores this will decrease to 0,5 till 1,0 hours. So when calculating large grids or for long times, the simulation time of XBeach can get out of hand. Below a couple of tips in order to reduce the computational expenses:

Disable processes that you don’t need (eg. morphology = 0)
Calculating on multiple cores with MPI.
Reduce the simulation time. Model for example only the ‘real’ peak of the storm.
Increase the morfac. Morfac of 10 is the maximum for strom conditions
When running in multi_dir:
- Decrease the wave grid by reducing the thetamin, thetamax and dtheta.
- Run with single_dir = 1. This will turn on stationary model for refraction and use surfbeat based on the mean direction. Settings needed are dtheta = thetamax – thetamin and dtheta_s = 10.
Optimize the model grid by making use of the OpenEarth toolbox. The function xb_generate_bathy optimize the grid by varying the grid size in x and y.

Step 5: calibrate / validate the model¶

An important fourth step in modeling with any morphological process-based model is the calibrating and validation part. In this tutorial we propose to calibrate by applying a two-step morphological calibration approach as suggested and demonstrated by Nederhoff (2014). This is a simple straight-forward calibration method for morphological development during extreme conditions in XBeach when multiple regimes of Sallanger (2000) are of importance (combination of dune erosion and overwash).

The first substep is to increase the parameterized wave asymmetry sediment transport component (facua). A higher value will result in less net offshore sediment transport and is suitable for calibrating dune erosion. XBeach considers the wave energy of short waves as averaged over their length, and hence does not simulate the wave shape. A discretization of the wave skewness and asymmetry was introduced by Van Thiel de Vries (2009), to affect the sediment advection velocity. One hypothesis is that on steep beaches wave asymmetry becomes more important and since the facua parameter is determined for Dutch beaches, calibration is needed (Nederhoff, 2014). Nederhoff et al. (2015) shown that a facua of 0.25 leads to good agreement in morphological development during Sandy for New Jersey. This is much higher that the default value of XBeach (0.1).

The second substep is to increase the roughness of the barrier (parameter: bedfricvalue). A higher roughness will result in less sediment transport on top of the barrier and is applied to calibrate the overwash regime. Friction is used for the bed stability and the sediment transport via the formulation of the bed shear stress (?b). For a situation with hydraulic rough flow on top of a barrier island the roughness needs to be higher than the default value, since a higher Manning value represents friction due to the presence of structures and/or vegetation. In fact the friction can be used as a sum for all kind of different contributions that can have an impact on the flow. The reason is that small constructions have limited impact on the morphological development of the barrier. However to take into account some of the effect friction (with a higher Manning value) can be used as a sum for all kind of different contribution. De Vet et al. (2015) shown that a Manning value of 0.04 leads to good agreement in morphological development during Sandy for New York. Nederhoff et al. (2015) did a similar calibration however with a Chezy coefficient and for the state of New Jersey, however this lead to a similar dimensionless friction value.

Step 6: Post-processing: make graphs and animations¶

When one is happy with its result (in terms of skill score) post processing needs to be carried out. Post processing is the term used for all work related to making figures, animations and graphs. An example of an XBeach animation can be foud here (https://www.youtube.com/watch?v=qw7kvt-aBdU) or in

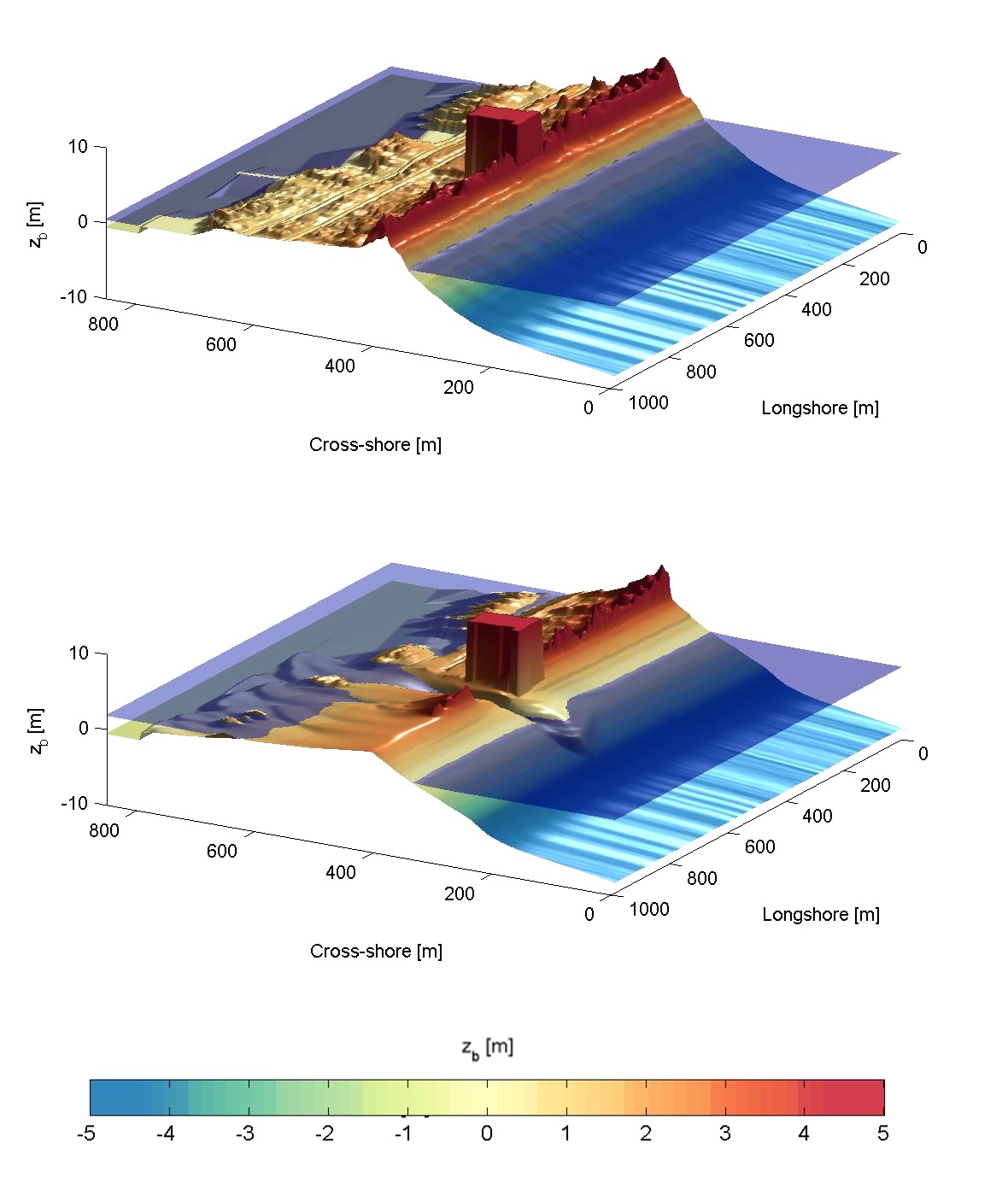

Fig. 30 Pre (top panel) and post Sandy (lower panel) in a three dimensional plot with both bed and water levels. (Nederhoff et al., 2015) ?

References¶

De Vet, P. L. M., McCall, R. T., Den Bieman, J. P., Stive, M. J. F., Van Ormondt, M. (2015). Modelling dune erosion, overwash and breaching at Fire Island (NY) during Hurricane Sandy. Proceedings Coastal Sediments, San Diego, CA.

Donnelly, C. (2007). Morphologic Change by Overwash : Establishing and Evaluating Predictors. Journal of Coastal Research, (50), 520–526.

National Hurricane Center. (2012). Hurricane Sandy Advisory Archive.

Lopez-Feliciano, O. L. (2014). Implementation of CMS high resolution model to study morphology change in a groin field during Hurricane Sandy. Hoboken, New Jersey.

Nederhoff, C. M. (2014). Modeling the effects of hard structures on dune erosion and overwash Hindcasting the impact of Hurricane Sandy on New Jersey.

Nederhoff, C. M., Lodder, Q. J., Boers, M., Den Bieman, J. P., & Miller, J. K. (2015). Modeling the effects of hard structures on dune erosion and overwash - a case study of the impact of Hurricane Sandy on the New Jersey coast. Proceedings Coastal Sediments, San Diego, CA.

Roelvink, J. A., Reniers, A. J. H. M., van Dongeren, A. R., van Thiel de Vries, J. S. M., McCall, R. T., & Lescinski, J. (2009). Modelling storm impacts on beaches, dunes and barrier islands. Coastal Engineering, 56(11-12), 1133–1152. doi:10.1016/j.coastaleng.2009.08.006

Sallenger, A. (2000). Storm impact scale for barrier islands. Journal of Coastal Research, 16(3), 890–895.

Van Ormondt, M. (2014). Delft3D model of waves and surge among the East coast of the USA. Personal communication. Deltares, Delft.

Van Rijn, L. C. (2003). The predictability of cross-shore bed evolution of sandy beaches at the time scale of storms and seasons using process-based models. Coastal Engineering, 47(3), 295–327. doi:10.1016/S0378-3839(02)00120-5

Van Thiel de Vries, J. S. M. (2009). Dune erosion during storm surges. PhD thesis, Delft Unversity of Technology, Delft.
